Chicken Nuggets Processing Line

This chicken nuggets processing line is automatic line and all machines are made of stainless steel.


Introduction:

1, Working flow:

Material——powdering machine——Deep fry——De-oiling——Cooling



2, Specifications and Pictures:

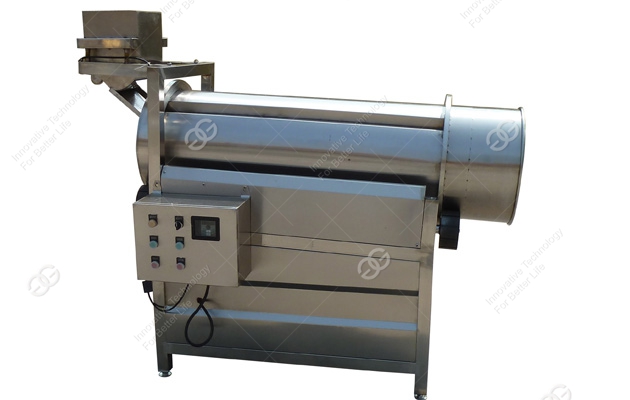

(1)Continuous powdering machine

This machine is used to cover powder on the surface on chicken nuggets. It can continuous working, and the powdering amount also can be controlled. Made of stainless steel 304. Automatic discharging system.

Model Capacity Power Dimension Weight

GG 500Kg/h 1.1Kw 1500*1000*1700mm 200Kg

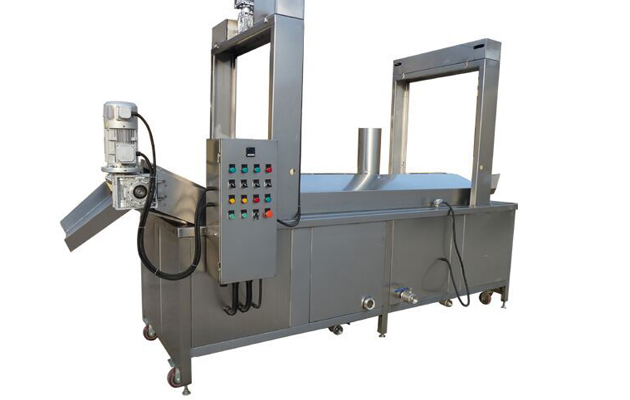

(2)Continuous Frying Machine

This kind of continuous frying machine, it is made of stainless steel 304. Automatic feeding and automatic discharge. Water-oil separate working system with oil filter sytem. This machine is made with electric heating system, it also can be made to be gas heating system according to clients requirement.



Model Capacity Power Matching filter oil machine Dimension Weight

GG-350 500Kg/h 120Kw 3500*700*950mm 3500*1200*2400mm 1000Kg

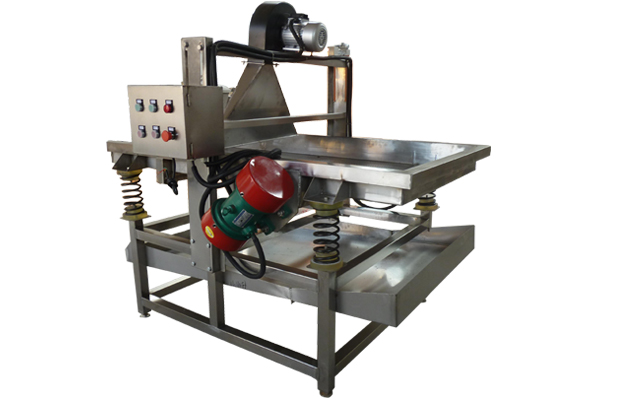

(3)Vibrating Screen

This kind of vibrating screen is used to remove the oil on the surface of chicken nuggets. It is made of stainless steel 304. And will no damage to chicken nuggets.

Model Capacity Power Dimension Weight

GG 1500Kg/h 0.5Kw 1800*1000*1200mm 200Kg

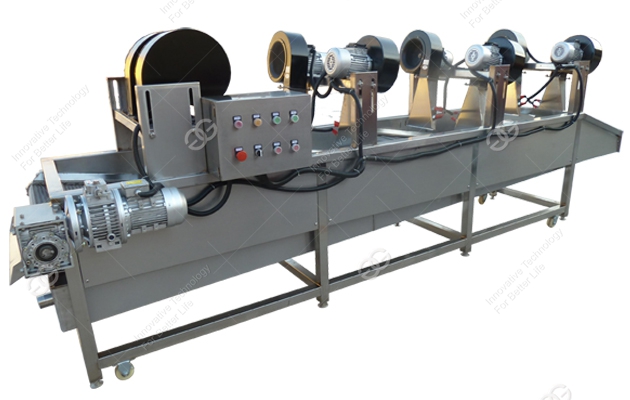

(4)Wind Cooling Machine

This kind of wind cooling machine is used to remove the oil on the surface of chicken nuggets. After the chicken nugget come into this machine from vibrating screen, the fan of this machine will produce air to cool the chicken nuggets and also remove the residual oil on the surface of chicken nuggets.

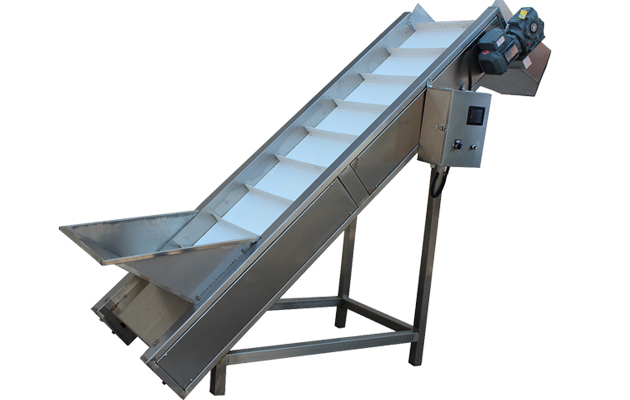

(5)Lifting Machine
