Features

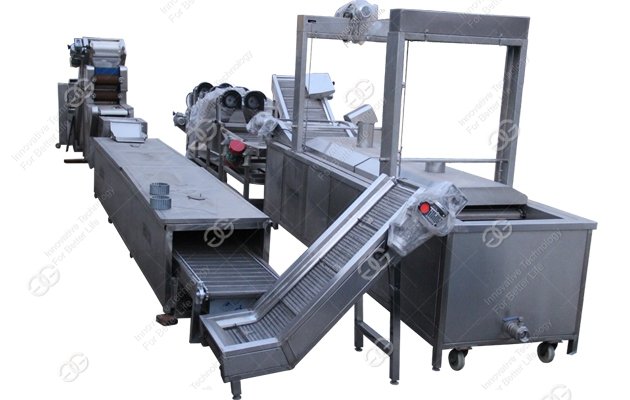

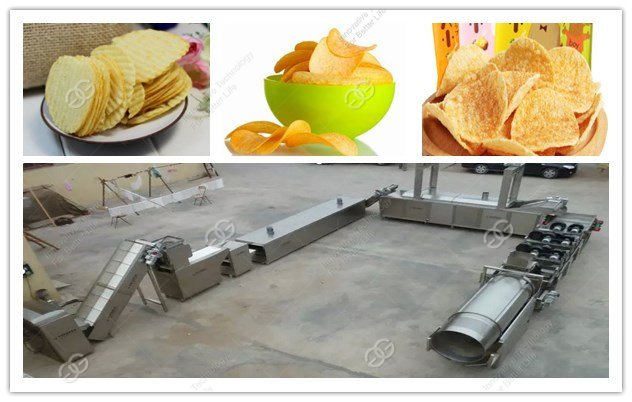

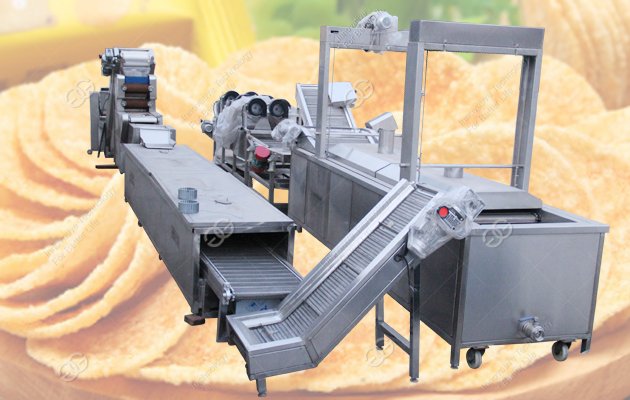

The compound potato chips production line can realize full automatic production, not only improve production efficiency, but also ensure production quality and reduce cost.The output can be customized according to the needs of customers.For the shape and size of finished compound potato chips,we can customize the precise mould to process to your demand.
Working Process of Compound Potato Chips Production Line For Sale:
Mixing Raw Material---Calender---Forming---Air Drying---Frying---Oil Removing---Air Drying Deoiling---Flavoring---Packing
Main Machine In Compound Potato Chips Production Line Plant:
Features of Compound Potato Chips Making Machine:
Working Process of Compound Potato Chips Production Line For Sale:
Mixing Raw Material---Calender---Forming---Air Drying---Frying---Oil Removing---Air Drying Deoiling---Flavoring---Packing
Main Machine In Compound Potato Chips Production Line Plant:
- For the Calender Group:General, it is with three sets of rolling roller.
- Compound Potato Chips Forming machine: For this machine,the finished size and shape can be designed according to the mould on the forming machine. One set of mould roller can produce one size. If you need different shape and different size, we can customize the mould for you.
- Compound Chips Frying Machine: The frying machine is an oil-water mixed frying equipment. It using the international advanced oil-water mixing technology,can keep the oil clean, extend the service life of the oil and reduce the production cost.
- For vibrate deoiling machine: It helps remove excess oil from the surface of the chips, improves texture, and is easy to preserve
- For Flavoring Machin： it is with 10r/min, working speed is adjustable. It is special with spice adding motor to control, and also can adjust the machine to control the amount of spice.
Features of Compound Potato Chips Making Machine:
- All machines are made of 304 stainless steel,can ensure production safety issues in the production process.
- Compoundpotato chips frying machine adopts advanced and efficient heating system, which has insulation effect, can save energy, improve work efficiency and reduce unit cost.
- The fryer machine can be made to be Electricity Heating, Gas Heating and Coal Heating according to clients’ requirement.
- The output can be customized according to client's requirement.
- All machine is for one year guarantee.
Technial Data
| Name | Specific |
| 1.Vacuum Flour Mixer(100kg) |
Capacity:100kg/time Power:20.25kw Size:2000*1000*1600(mm) Weight:700kg |
| 2.Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200(mm) Weight:200kg |
| 3. Calender Group |
Capacity:500kg/h Power:3kw Size:4000*900*2200（mm) Weight:1200kg |
| 4. Forming Machine | Power:1.5kw Size:1100*900*1200(mm) Weight:260kg |
| 5. Drying Line |
Capacity:500kg/h Power:76kw Size:8000*1100*1200(mm) Weight:1200kg |
| 6. Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200（mm) Weight:200kg |
| 7.Fryer |
Capacity:500kg/h Power:170kw Size:5000*1200*2400（mm) Weight:2000kg |
| 8. Vibration Oil Removal Machine |
Capacity:500kg/h Power:0.5kw Size:1800*800*1000（mm) Weight:180kg |
| 8.Air Drying Deoiling Machine |
Capacity:500kg/h Power:10.1kw Size:4000*1200*1400（mm) Weight:600kg |
| 9.Elevator |
Capacity:1000kg/h Power:0.55kw Size:2000*700*2200（mm) Weight:200kg |
| 11. Flavoring Machine |
Capacity:500kg/h Power:0.75kw Size:2400*900*1700（mm) Weight:280kg |
